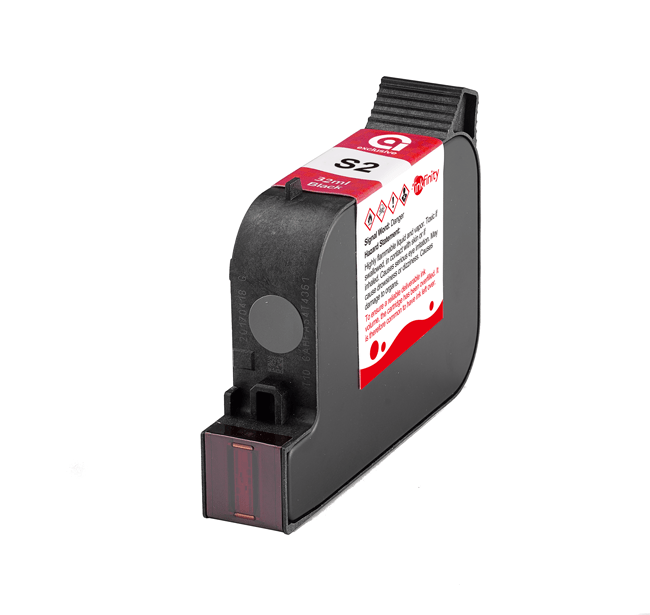

X1 features ANSER’s proprietary NexGen coding technology, which supports different TIJ cartridge models, giving end-users a wider range of ink selections that best suit their substrate application and coding requirements.

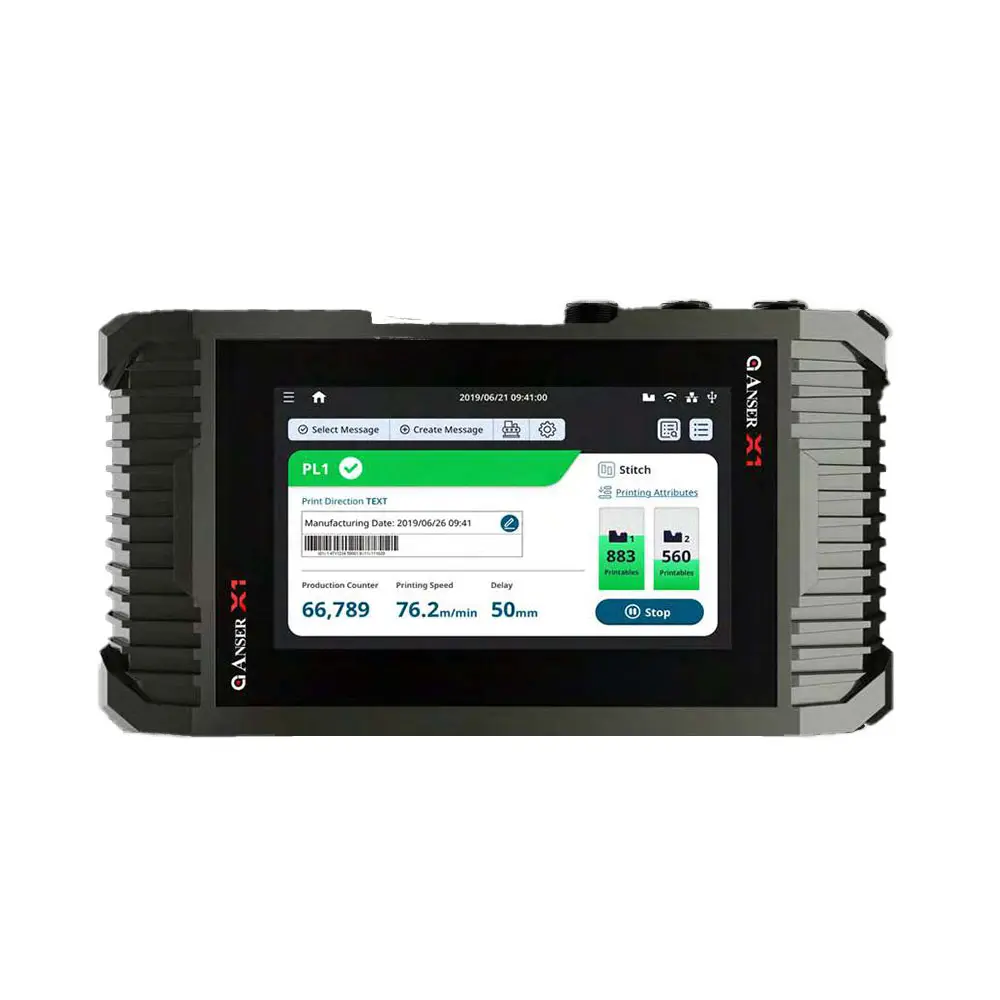

SPECIFICATION – CONTROLLER

• Maximum number of printhead: 2
• Display: 7” Color LCD Capacitive Touchscreen (800×480 px) (Compatible with most medical & industrial gloves)
• Printing Functions: Static Data: Text, Log0
• Dynamic Data: String, Shift, Counter, Production Date, Expiration Date
• Fonts & Size Standard: Arial, Other Ture Type Fonts can be loaded
• System Language: (add input lang.) English, Spanish, German, French, Italian, Traditional Chinese, Simplified Chinese, Japanese, Korean, Russian, Portuguese, Turkish, Hungarian, Slovak, Czech, Swedish, Romanian, Serbian, Bulgarian, Polish
• Dimensions & Weight: 291 x 142 x 52mm / 2.12 Kg
• Operating Temp: 0~40 Celsius
  Communication Protocols: TCP IP/UDP, Modbus TCP, and ANSER U2 Net protocol
• Power Input: AC 100V~240V, 50/60Hz (90Watt)
• I/O Ports:
  • USB 2.0 connector x 2
  • RS-485 & RS-232 connector x 1
  • RJ-45 connector x 1
  • Digital I/O connector (1 IN & 5 OUT pins)
  • Encoder x 1
  • Photocell x 1
  • Barcode Type: EAN8, EAN13, EAN14, EAN128, UPCA, UPCE, CODE39, CODE128, ITF14 (SCC-14), NVE18 (SSCC-18), INTER25, CODABAR, P DF41 7DATAMATRIX, QRCOD E, GS 1 (DATAMATRIX, DATABAR EXP, DATABAR, QRCODE), D’MATRIX 8×32, DUN14, Aztec Code
  • Operating RH.: 0%~90%, Non-condensing
  • IP Rating: IP66 housing

SPECIFICATION – PRINTEAD TYPE H

• Printing Technology: High Resolution Thermal Ink Jet
• Print Height: Single Print Head: 12.7mm (0.5 inch) or 25.4mm (1.0 inch)
• Printing Resolution: 600 x 600 DPI
• Printing Speed:
  • 30m/min @ 600 DPI
  • 300m/min @ 60 DPI
• Printing Distance: 6 mm
• Operating Temp: 0~40 Celsius
• Operating RH: 0% ~ 90%, Non-condensing
• Dimensions & Weight: 82 x 30 x 210 mm / 0.46kg
• Printhead Cables:
  • Standard: 2M
  • Optional: 5M, 10M, 15M
