The ALline labelling system is automatically operated in-line systems which can be configured for the labelling of cylindrical, elliptical or rectangular products; moreover, they can suit specific requirements such as the application of tamper-proof seals or labelling of singularly shaped products.

In more detail, ALline is based on the “built-in” philosophy, which means that all components are “included” in the structure/cabinet, well protected against dirt and accidental bumps. The cobalt blue (or stainless steel) structure is extremely sturdy and, thanks to its eye-catching design, it qualifies the whole packaging line. The control panel is located in an upper position, well protected against washing liquids or product loss. In standard configurations, the optional safety cabinet perfectly fits into the basic structure, thus sealing the ceiling; its pantograph style doors are extremely ergonomic and considerably reduce the footprint.

The completely internal cable path guarantees simpler cleaning, improved protection as well as a cleaner design. The microprocessor-controlled format changeover is coupled with minimum mechanical adjustments, which have been engineered so that every component can be repeatedly positioned in a simple and reliable manner and firmly secured during its operations.

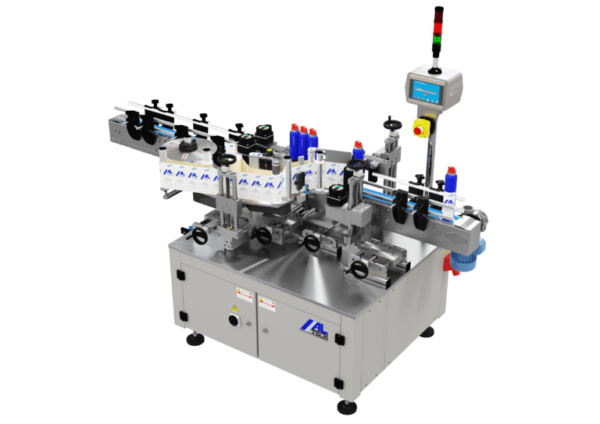

ALline C

ALline C is configured to apply wrap-around labels to cylindrical products, usually glass or metal jars and bottles containing foodstuff, as well as chemical, cosmetic and pharmaceutical products in plastic, glass or metal vials. Its compact base may be equipped with a side labelling head of the ALStep or ALRitma series.

ALline E

ALline E has been configured to apply two front/back labels to elliptical or rectangular products, generally food, cosmetic, pharmaceutical and chemical products in plastic, glass or metal bottles and jars. Its basement can be fitted with two opposing side ALRitma heads. ALline E can be equipped with the handling and spacing devices used on ALline C, whilst specific orienting and stabilising units are also available.

ALline Special

ALline can also be specifically configured to meet special requirements. Multiple labelling in several positions or the corner application of tamper-proof seals is possible thanks to the integration of extremely reliable and tested modular systems. The labelling of unstable cylindrical products can be performed by means of a special continuous or alternate-motion horizontal rollers conveyor.

Whenever high-speed or range is needed, bigger powered unwind units can be mounted. For speeds up to 500 p/min, the non-stop configurations with automatic head activation allow an easy roll change without having to stop the machine and with no reject for non performed labelling.

Technical Specification

• Power Supply – 400 V 50 Hz three-phase.
• Power Consumption – 1 kw.
• Performances -up to 500 pcs/min.
• Adjustable
