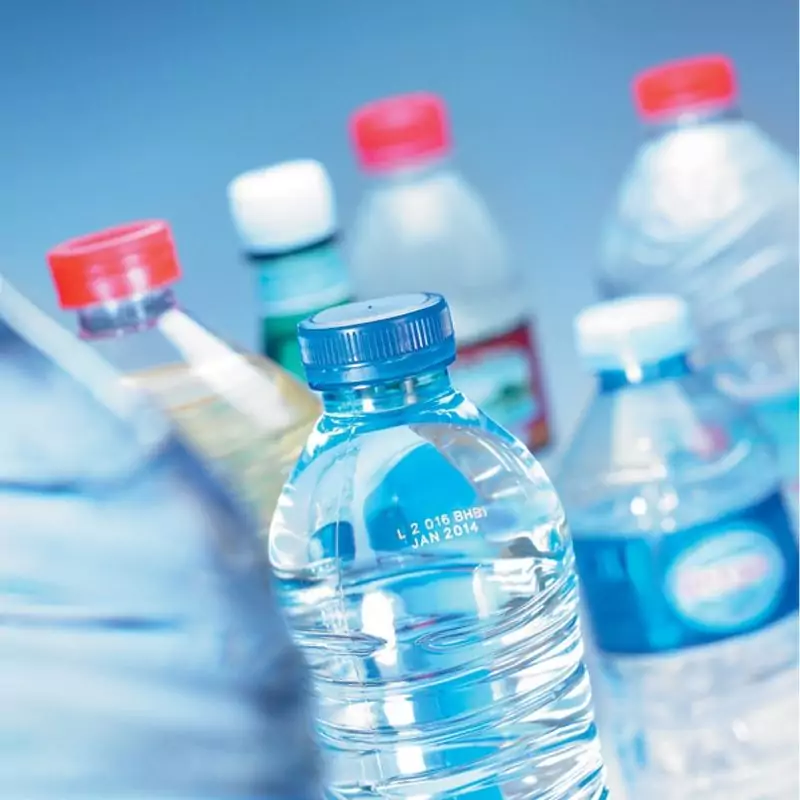

LASER SMARTLASE C150 C350 SI 3
LASER SMARTLASE C150 C350 SI
LASER SMARTLASE C150 C350 TD

SmartLase C150/C350

The SmartLase C350S 30-watt CO2 laser coder is designed for high-speed PET beverage production and provides crisp codes even in wet environments. SmartLase C150S is the 10-watt CO2 option for medium-speed lines.

Key benefits

  • Flexibility to code in various packaging positions and orientations
  • No risk of perforation, even on lightweight PET bottles
  • Qualified for integration into the fastest filling and blower machines (Krones, KHS, Sidel Super Combi)
  • Replaces 50 to 60-watt lasers reducing energy costs

Key features

  • A Wavelength of 10.6 µm provides the flexibility to code a wide range of surfaces.
  • Print at speeds up to 2,100* characters/s (per second)
  • The optimal wavelength of 9.3 µm for PET bottles and sleeves
  • Protocol specifically optimized for high-speed bottling lines, e.g. Krones Checkmat, to enable advanced traceability requirements for such lines

Download Brochure

SmartLase C150/C350

Description

Introducing new, patented SmartLase Code Technology embedded into all SmartLase models. This innovative advance includes single and universal fonts as well as algorithms capable of scribing impeccable lines, curves, and points faster than ever before. With 30% greater printing performance and the best scribing quality compared to market standards, the SmartLase C150 / C350 delivers two key benefits:

For the beverage industry: The output rate increases from 1,200 to 1,800 bottles/min.

For the food industry: Character printing capacity of one code increases from 30 to 120 characters for improved traceability and anti-diversion.

Benefits

  • Fast – more than 100,000 products coded per hour.
  • Robust – extended coder lifetime by 30%.
  • Change of scan head module in 10 minutes without alignments.
  • Pointing diode and integrated laser power meter option facilitates diagnostics.
  • Job and file transfers through the USB port.

Print Features

  • Coding on stationary or moving products.
  • A number of text lines – limited only by character height and allowable print area.
  • Character height – from 1 mm to 100 mm.
  • Choice of characters – Chinese, Latin, and Unicode fonts.
  • Three contrast modes: high, medium, and low contrasts due to patented SmartLase Code Technology.
  • The wide selection of languages: English, French, Spanish, German, Italian, Portuguese, Brazilian, Chinese, Korean, etc.

Options

  • Coding area and focal distance (mm): Lens 55 x 55/fd 80 – Lens 70 x 70/fd 100 – Lens 120 x 120/fd 175 – Lens 155 x 155/fd 220 – Lens 205 x 205/fd 290.
  • The remote user interface on the 30 W version.
  • IP65 laser head.
  • Integrated laser power meter.
  • Nine-meter interconnecting cable length with an optional 90° print head cable adaptor.
  • Three-meter cuLus listed interconnecting cable.
